Features:
Cone
Voice Applications
High Profile
Characteristic | Minimum | Rated | Maximum | Notes |
Type of Magnet | NdFeB | |||
Type of Frame | Metal | |||
Type of Diaphragm | Paper | |||
Type | Magnetic | |||
Sound Pressure Level dB at 30cm | 89.44 | Measured 85±3dB at 0.25W and 50cm. | ||
Power W | 0.25 | 0.5 | ||
Frequency kHz | 0.48 | 0.48 | 7 | |
Available Input Impedance Ω | 4 | 8 | 64 | |
Width mm | 50 | |||
Height mm | 18.4 |

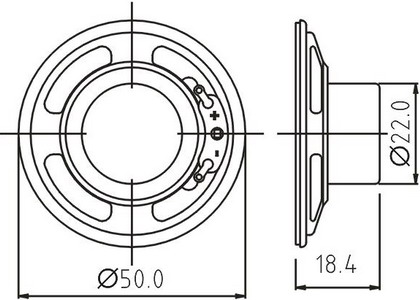

Dimension Drawing:
![](https://www.east-elec.com/sites/default/files/speaker/SWC-50R18.4-8N0.25R-2_0.jpg)
