Voice Applications
High Profile
Characteristic Minimum Rated Maximum Notes
Type of Magnet NdFeB
Type of Frame Metal
Type of Diaphragm Complex
Type Magnetic
Sound Pressure Level dB at 30cm 82.44 Measured 78±3dB at 3W and 50cm.
Power W 3 5
Frequency kHz 0.16 0.16 18
Available Input Impedance Ω 4 4 64
Width mm 52
Height mm 30.4

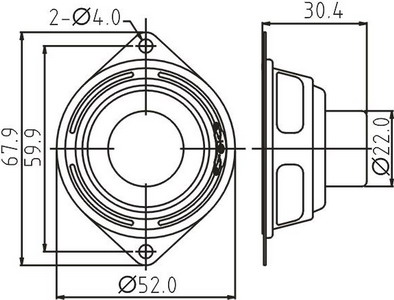

Dimension Drawing:
