Multimedia Applications
Low Frequency
High Power
Characteristic Minimum Rated Maximum Notes
Type of Magnet NdFeB
Type of Frame Plastic
Type of Diaphragm Complex
Type Magnetic
Sound Pressure Level dB at 30cm 85.44 Measured 81±3dB at 3W and 50cm.
Power W 3 5
Frequency kHz 0.2 0.2 20
Available Input Impedance Ω 4 4 64
Width mm 53
Height mm 30

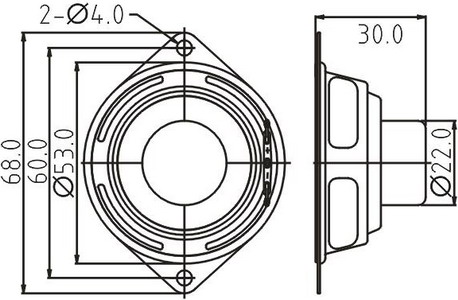

Dimension Drawing:
