Features:
Cone
Voice Applications
External
| Characteristic | Minimum | Rated | Maximum | Notes |
| Type of Magnet | Ferrite | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | Complex | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 91.44 | Measured 87±3dB at 2W and 50cm. | ||
| Power W | 2 | 3 | ||
| Frequency kHz | 0.2 | 0.2 | 20 | |
| Available Input Impedance Ω | 4 | 22 | 64 | |
| Width mm | 65 | |||
| Height mm | 34.6 |

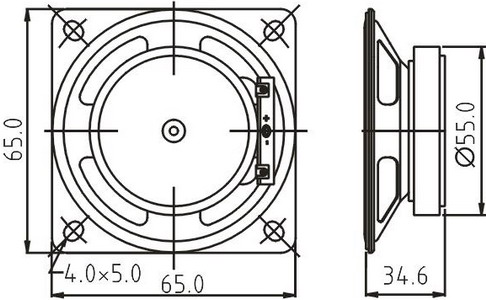

Dimension Drawing:
