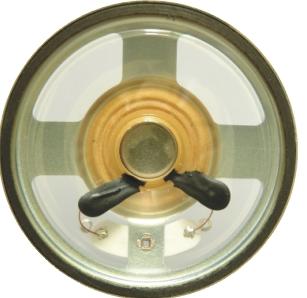

SWC-66R15-8N1.5R

Features:
Cone
Voice Applications
High Profile
Characteristic Minimum Rated Maximum Notes
Type of Magnet NdFeB
Type of Frame Metal
Type of Diaphragm PET
Type Magnetic
Sound Pressure Level dB at 30cm 90.44 Measured 86±3dB at 1.5W and 50cm.
Power W 1.5 3
Frequency kHz 0.38 0.38 7
Available Input Impedance Ω 4 8 64
Width mm 66
Height mm 15

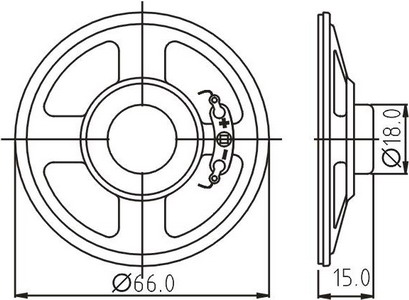

Dimension Drawing:
