| Characteristic | Minimum | Rated | Maximum | Notes |
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 96.4 | Measured 86±3dB(SPL) at 1W and 0.5m. Frequencies: 1000 / 1200 / 1500 / 2000Hz | ||
| Power W | 5 | 6 | ||
| Frequency kHz | 0.25 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 45 | 100 | ±0.5mm | |
| Height mm | 22 | ±0.5mm |

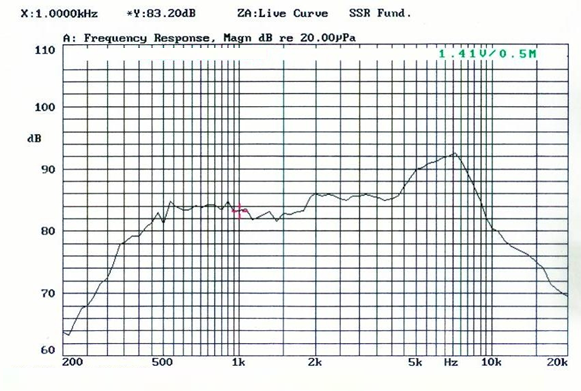

Characteristic Response:

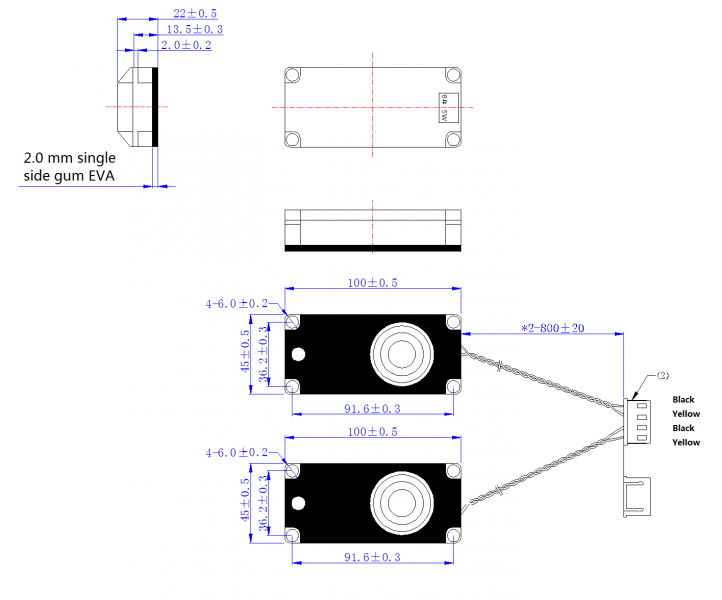

Dimension Drawing:
