Characteristic | Minimum | Rated | Maximum | Notes |
Type | Magnetic | |||
Sound Pressure Level dB at 30cm | 96.4 | Measured 82±3dB(SPL) at 0.25W and 0.5m. Frequencies: 500 / 600 / 800 / 1000Hz | ||
Power W | 10 | 15 | ||
Frequency kHz | 0.1 | ±20% | ||
Available Input Impedance Ω | 8 | |||
Width mm | 116 | |||
Height mm | 60 | ±1mm |

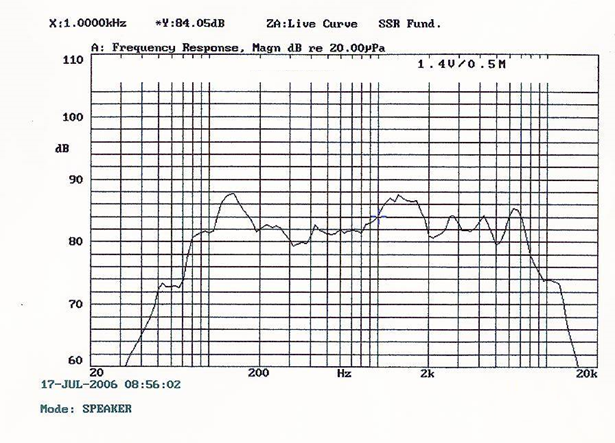

Characteristic Response:
![](https://www.east-elec.com/sites/default/files/speaker/2_59.png)

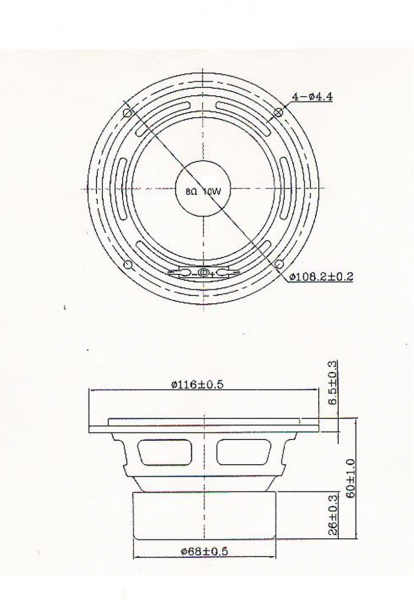

Dimension Drawing:
![](https://www.east-elec.com/sites/default/files/speaker/2_145.png)
