| Characteristic | Minimum | Rated | Maximum | Notes |
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 102.5 | Measured 80±3dB(SPL) at 1W and 1m. Frequencies: 800 / 1000 / 1200 / 1500Hz | ||
| Power W | 8 | 10 | ||
| Frequency kHz | 0.25 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 34.5 | 126 | ||
| Height mm | 23.6 |

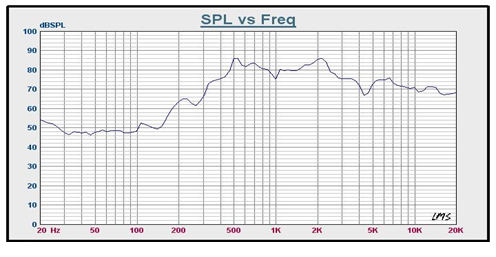

Characteristic Response:

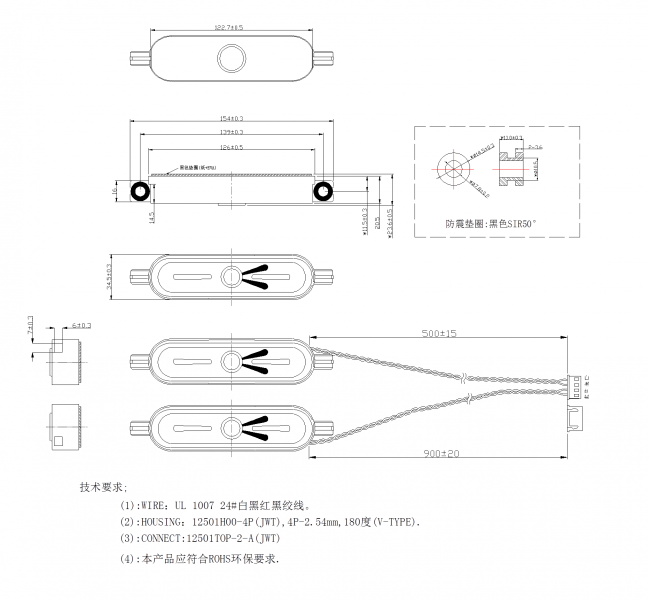

Dimension Drawing:
