SWM-127.5L41-4F5R

Characteristic Minimum Rated Maximum Notes
Type Magnetic
Sound Pressure Level dB at 30cm 96.4 Measured 84±3dB(SPL) at 0.25W and 0.5m. Frequencies: 800 / 1000 / 1200 / 1500Hz
Power W 5 8
Frequency kHz 0.14 ±20%
Available Input Impedance Ω 4
Width mm 78 127.5 ±0.5mm
Height mm 41 ±1.5mm

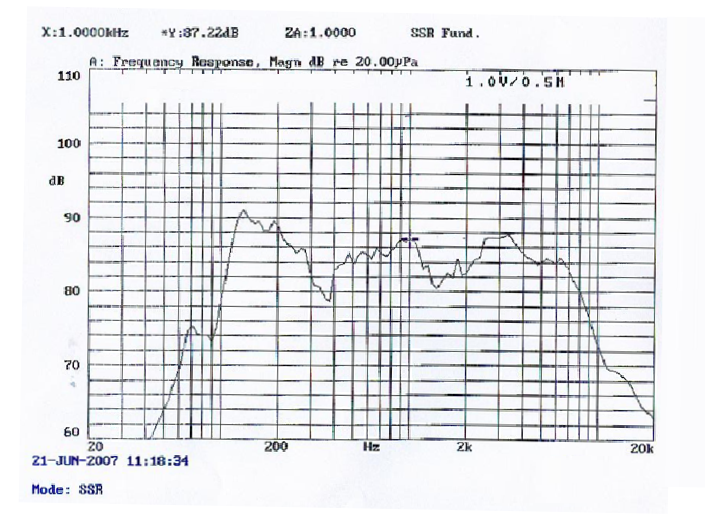

Characteristic Response:

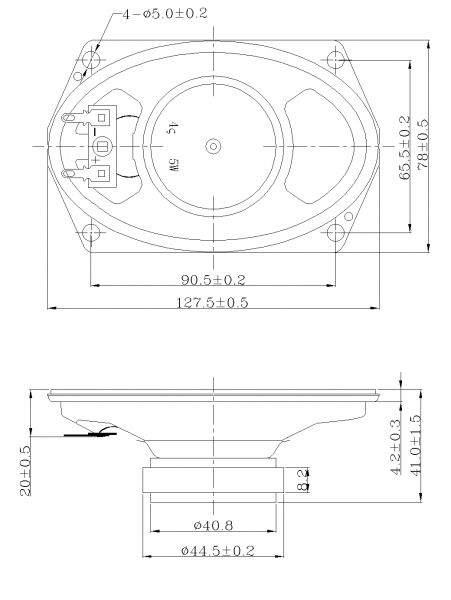

Dimension Drawing:
