| Characteristic | Minimum | Rated | Maximum | Notes |
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 102.5 | Measured 80±dB(SPL) at 1W and 1m. Frequencies: 0.6 / 0.8 / 1.0 / 1.2kHz | ||
| Power W | 8 | 10 | ||
| Frequency kHz | 0.24 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 33 | 146 | ||
| Height mm | 38 |

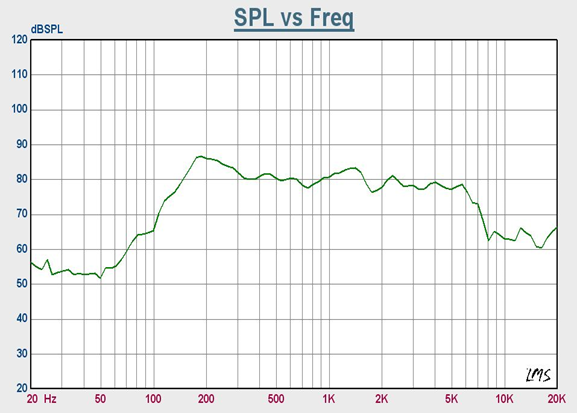

Characteristic Response:

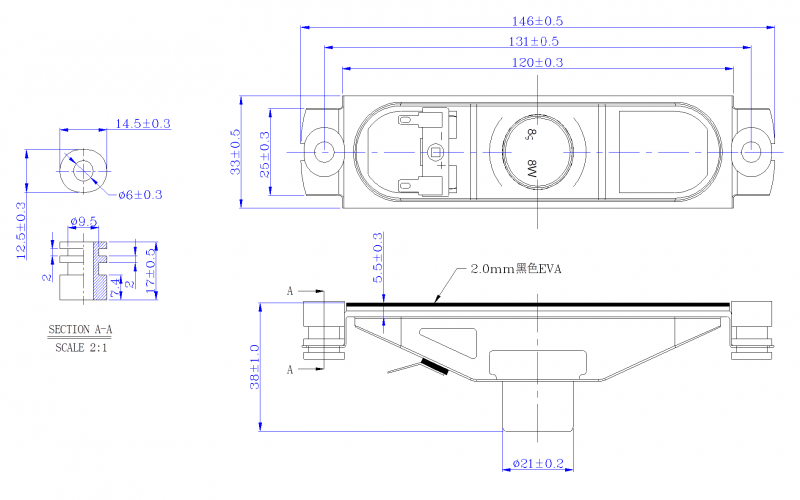

Dimension Drawing:
