| Characteristic | Minimum | Rated | Maximum | Notes |
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 102.5 | Measured 82±3dB(SPL) at 1W and 1m. Frequencies: 600 / 800 / 1000 / 1200Hz | ||
| Power W | 10 | 12 | ||
| Frequency kHz | 0.2 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 45.8 | 153 | ||
| Height mm | 17 |

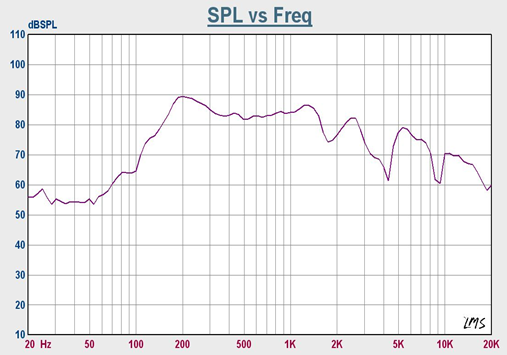

Characteristic Response:

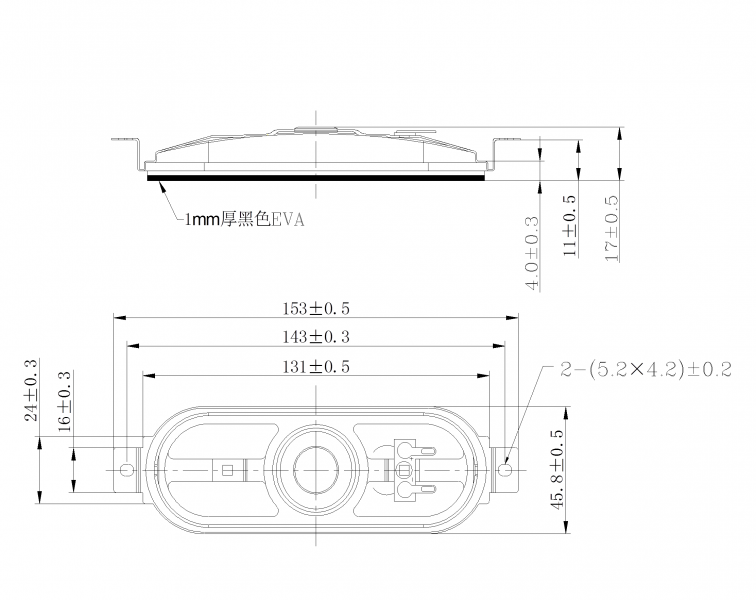

Dimension Drawing:
