Features:
Mylar
Waterproof
Characteristic | Minimum | Rated | Maximum | Notes |
Type of Magnet | NdFeB | |||
Type of Frame | Metal | |||
Type of Diaphragm | PET | |||
Type | Magnetic | |||
Sound Pressure Level dB at 30cm | 78.46 | Measured 88±3dB at 0.5W and 10cm. | ||
Power W | 0.5 | 0 | ||
Frequency kHz | 0.9 | 0.9 | 20 | |
Available Input Impedance Ω | 8 | 8 | 150 | |
Width mm | 17 | |||
Height mm | 4 |

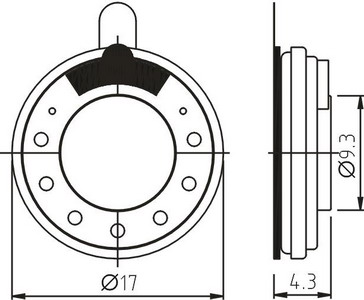

Dimension Drawing:
