Features:
Mylar
Suitable for Telecommunication applications
Waterproof
| Characteristic | Minimum | Rated | Maximum | Notes |
| Type of Frame | Metal | |||
| Type of Diaphragm | PET | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 79.46 | Measured 89±3dB at 0.1W and 10cm. | ||
| Power W | 0.1 | 0.2 | ||
| Frequency kHz | 0.75 | 0.75 | 9 | |
| Available Input Impedance Ω | 8 | 16 | 300 | |
| Width mm | 20 | |||
| Height mm | 3.6 |

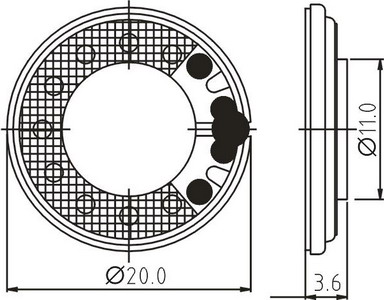

Dimension Drawing:
