SWM-224L41.5-16N10R

Characteristic Minimum Rated Maximum Notes
Type Magnetic
Sound Pressure Level dB at 30cm 96.4 Measured 82±3dB(SPL) at 1W and 0.5m. Frequencies: .800 1000 / 1200 / 1500 Hz
Power W 10 15
Frequency kHz 0.1 ±20%
Available Input Impedance Ω 16
Width mm 43.4 224
Height mm 41.5

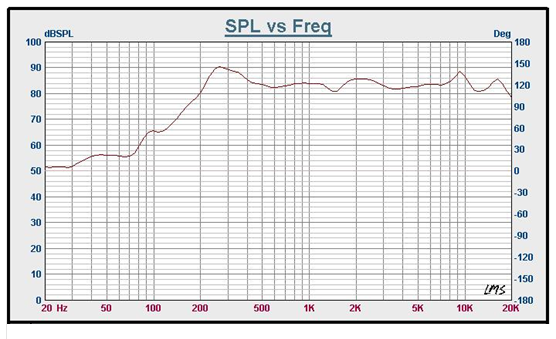

Characteristic Response:

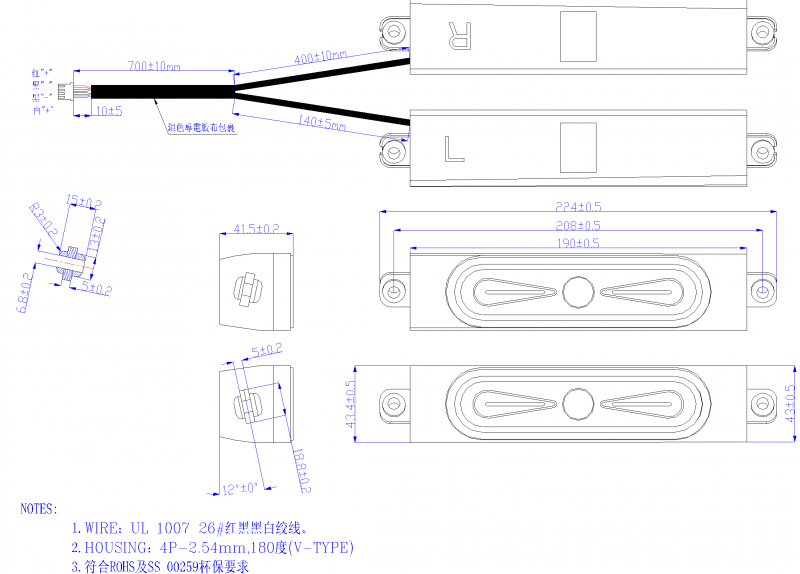

Dimension Drawing:
