Characteristic Minimum Rated Maximum Notes
Type Magnetic
Sound Pressure Level dB at 30cm 82.5 Measured 91±2dB(SPL) at 0.1W and 0.1m. Frequencies: 1.0kHz
Power W 0.13 0.22
Frequency kHz 0.73 ±15%
Available Input Impedance Ω 6
Width mm 23
Height mm 4.1

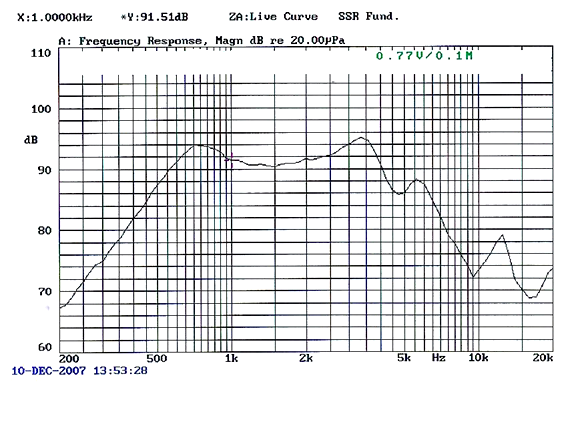

Characteristic Response:

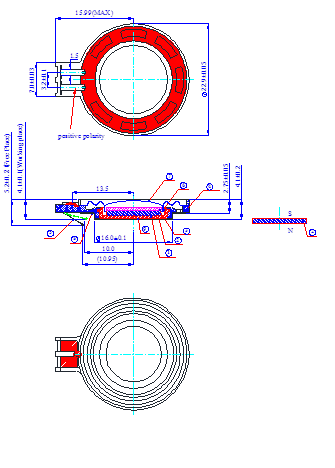

Dimension Drawing:
