Features:
Waterproof to IPX7 standard
Characteristic | Minimum | Rated | Maximum | Notes |
Type of Magnet | NdFeB | |||
Type of Frame | Metal | |||
Type of Diaphragm | PET | |||
Type | Magnetic | |||
Sound Pressure Level dB at 30cm | 79 | measured 89±3dB 0.1 m (At 1500,2000 ,3000Hz Av) | ||
Power W | 1 | 2 | @ Rated noise Power operating continuously for 100 hours and 2.83V. Max Power:program signal for 1 min on & 2 min off, cycling for 10 times at 4.00 V | |
Frequency kHz | 0.4 | 1 | 5 | Rated frequency ± 20% |
Available Input Impedance Ω | 8 | Rated Impedance ± 15% | ||
Temperature ºC | -25 | 55 | ||
Width mm | 23 | 23 | ||
Height mm | 4.6 | |||
Weight g | 3 | |||
Mounting | Chassis Mount | |||
Termination | lead wire | |||
Buzz / Rattle | @ 0.1m with SIN wave from 100Hz to 2KHz input/rated noise power and 2.83V |

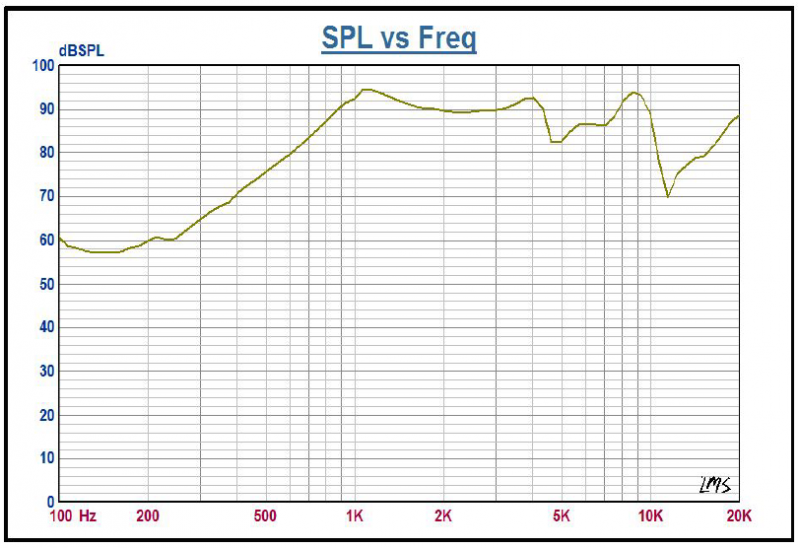

Characteristic Response:

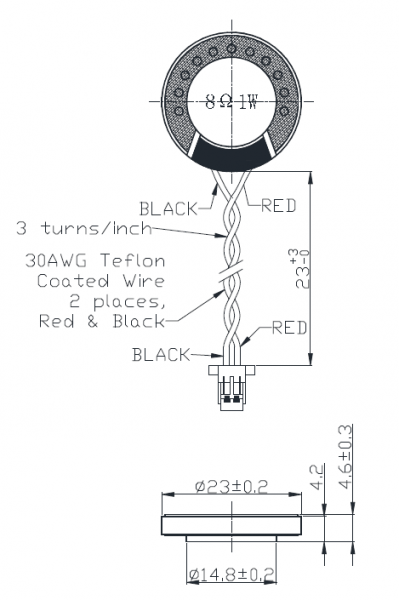

Dimension Drawing:
