SWM-26R4.7-B0.5R

Characteristic Minimum Rated Maximum Notes
Type Magnetic
Sound Pressure Level dB at 30cm 92 Measured 87±3dB(SPL) at 0.5W and 0.3m. Frequencies: 1000 / 1200 / 1500 / 2000Hz
Power W 0.5 0.8
Frequency kHz 0.45 ±20%
Width mm 26
Height mm 4.7

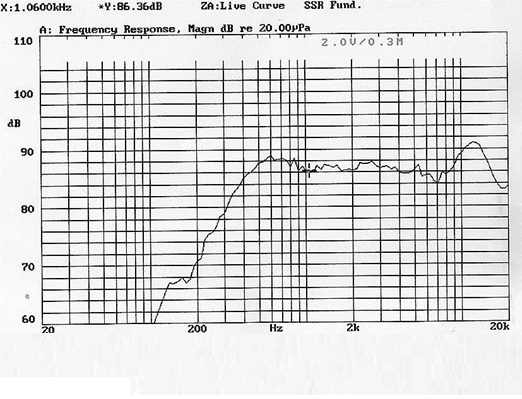

Characteristic Response:

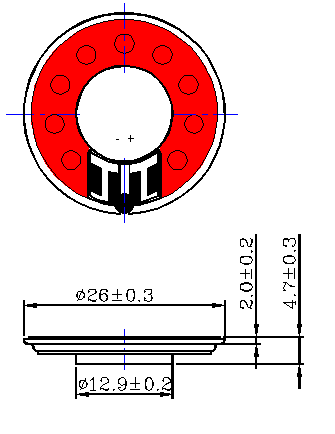

Dimension Drawing:
