Features:
Small Size
Low Frequency (480Hz)
Wide Bandwidth
| Characteristic | Minimum | Rated | Maximum | Notes |
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | PET | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 88 | measured at 0.3 m (At 1000,1200,1500,2000Hz Average) | ||
| Power W | 1.5 | 2 | Rated Power operating continuously for 100 hours at 3.5V. Max power operating 1 min on & 2 min off, cycling 10 times. V=4V | |
| Frequency kHz | 0.48 | 20 | ±20% at 3.5V and V=1V | |
| Available Input Impedance Ω | 8 | ±15% at 2kHz | ||
| Temperature ºC | -25 | 55 | ||
| Width mm | 28 | 28 | ||
| Height mm | 6 | |||
| Weight g | 7.2 | |||
| Mounting | Chassis Mount | |||
| Termination | lead wire | |||
| Buzz / Rattle | None @ 0.3m with sin wave from 100Hz to 2KHz input/rated noise power |

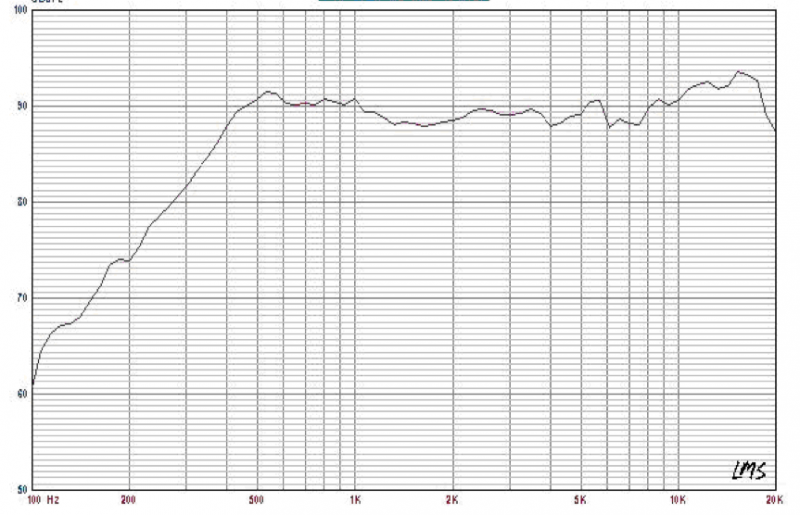

Characteristic Response:

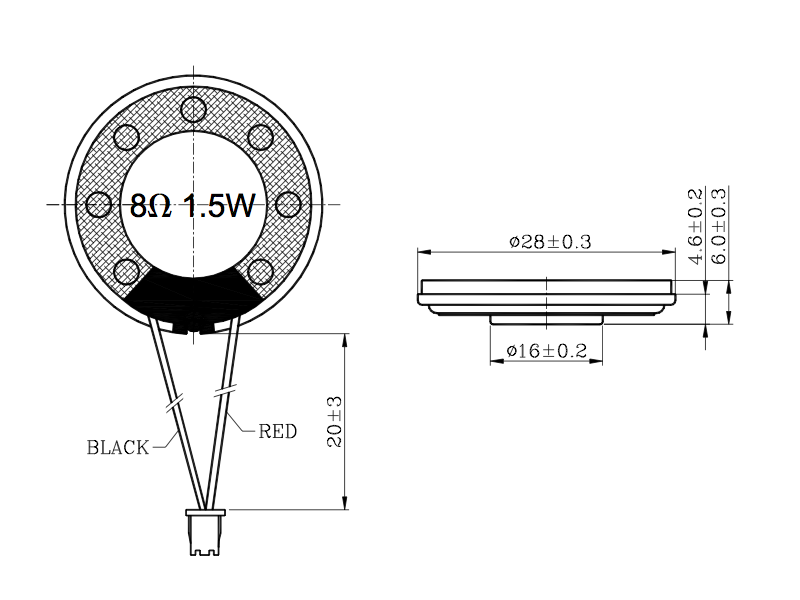

Dimension Drawing:
Test Circuit
