Characteristic | Minimum | Rated | Maximum | Notes |
Type | Magnetic | |||
Sound Pressure Level dB at 30cm | 96.4 | Measured 82±3dB(SPL) at 1W and 0.5m. Frequencies: 800 / 1000 / 1200 / 1500 Hz | ||
Power W | 5 | 6 | ||
Frequency kHz | 0.45 | ±20% | ||
Available Input Impedance Ω | 4 | |||
Width mm | 31 | 91 | ||
Height mm | 18 |

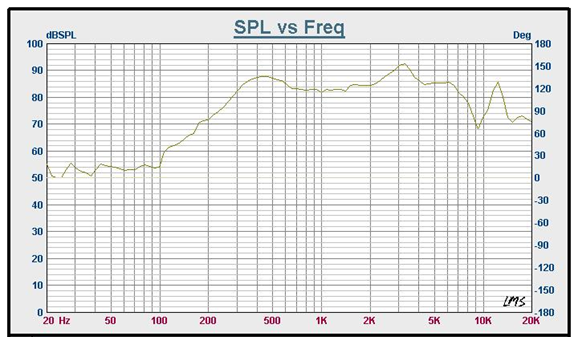

Characteristic Response:
![](https://www.east-elec.com/sites/default/files/speaker/2_98.png)

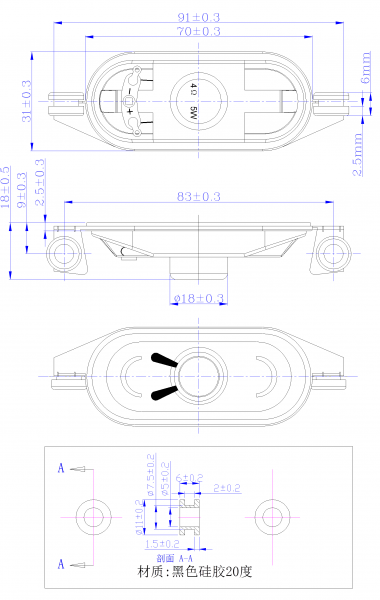

Dimension Drawing:
![](https://www.east-elec.com/sites/default/files/speaker/2_176.png)
