Features:
Mylar
Full Range Sound
Slim size
Waterproof
| Characteristic | Minimum | Rated | Maximum | Notes |
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | PET | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 75.46 | Measured 85±3dB at 0.1W and 10cm. | ||
| Power W | 0.1 | 0.2 | ||
| Frequency kHz | 0.53 | 0.53 | 15 | |
| Available Input Impedance Ω | 4 | 8 | 150 | |
| Width mm | 34 | |||
| Height mm | 4.2 |

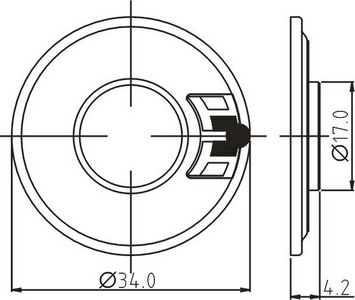

Dimension Drawing:
