Characteristic | Minimum | Rated | Maximum | Notes |
Type | Magnetic | |||
Sound Pressure Level dB at 30cm | 96.4 | Measured 85±3dB(SPL) at 1W and 0.5m. Frequencies: 600 / 800 / 1000 / 1200Hz | ||
Power W | 3 | 4 | ||
Frequency kHz | 0.35 | ±20% | ||
Available Input Impedance Ω | 4 | |||
Width mm | 34 | ±0.5mm | ||
Height mm | 14 | ±0.8mm |

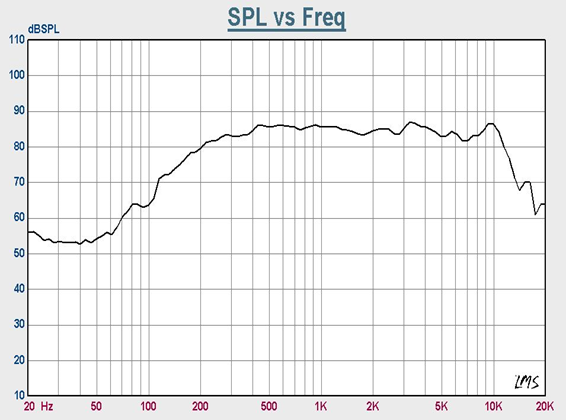

Characteristic Response:

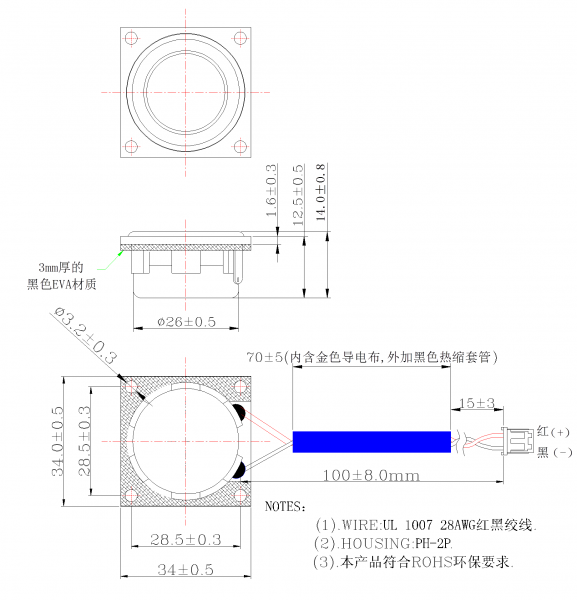

Dimension Drawing:
