| Characteristic | Minimum | Rated | Maximum | Notes |
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 96.4 | Measured 79dB(SPL) at 1W and 0.5m. Frequencies: 1.5 / 2.0 / 2.5 / 3.0kHz | ||
| Power W | 1 | 1.5 | ||
| Frequency kHz | 1 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 15.8 | 36.5 | ||
| Height mm | 9 |

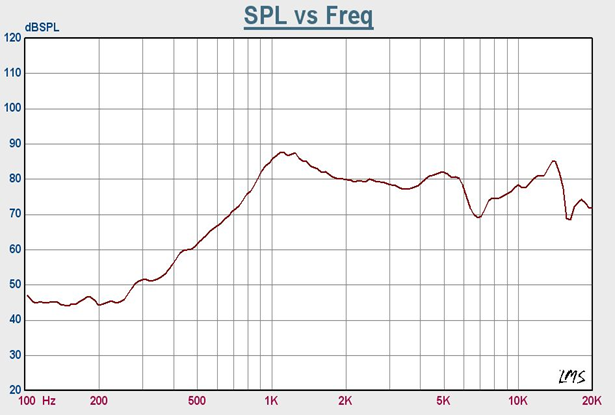

Characteristic Response:

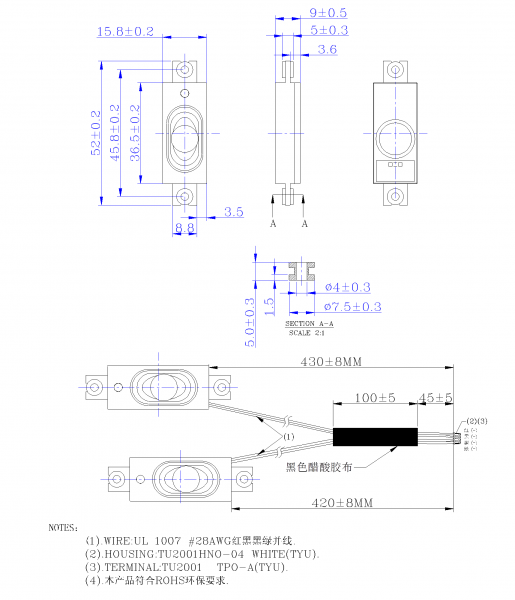

Dimension Drawing:
