| Characteristic | Minimum | Rated | Maximum | Notes |
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 92 | Measured 90±3dB(SPL) at 1W and 0.3m. Frequencies: 0.6 / 0.8 / 1.0 / 1.2kHz | ||
| Power W | 1 | 2 | ||
| Frequency kHz | 0.52 | ±20% | ||
| Available Input Impedance Ω | 4 | |||
| Width mm | 36 | |||
| Height mm | 4.2 |

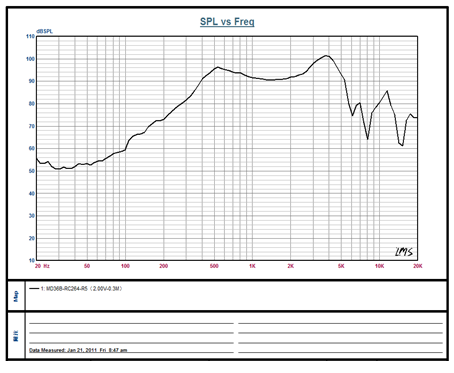

Characteristic Response:

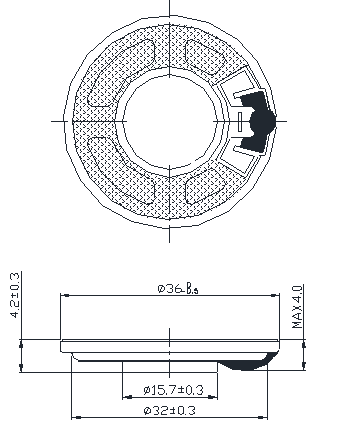

Dimension Drawing:
