Characteristic | Minimum | Rated | Maximum | Notes |
Type | Magnetic | |||
Sound Pressure Level dB at 30cm | 92 | Measured 88±3dB(SPL) at 1W and 0.3m. Frequencies: 1.0 / 1.2 / 1.5 / 2.0kHz | ||
Power W | 1 | 1.2 | ||
Frequency kHz | 0.42 | ±20% | ||
Available Input Impedance Ω | 8 | |||
Width mm | 36 | |||
Height mm | 4.8 |

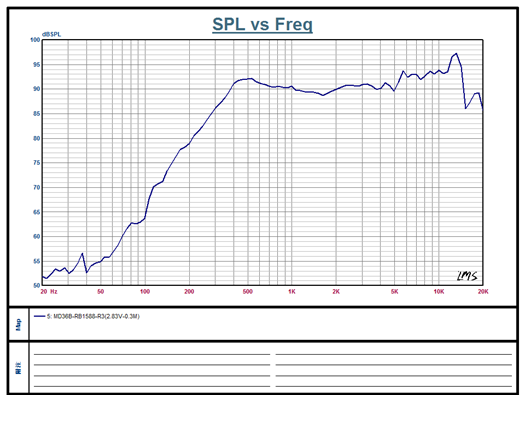

Characteristic Response:
![](https://www.east-elec.com/sites/default/files/speaker/2_19.png)

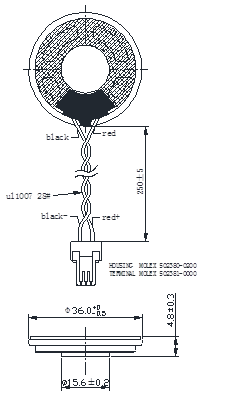

Dimension Drawing:
![](https://www.east-elec.com/sites/default/files/speaker/1_18.png)
