| Characteristic | Minimum | Rated | Maximum | Notes |
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 102.5 | Measured 85±3dB(SPL) at 1W and 1m. Frequencies: 1000 / 1200 / 1500 / 2000Hz | ||
| Power W | 2 | 2.5 | ||
| Frequency kHz | 0.52 | ±20% | ||
| Available Input Impedance Ω | 4 | |||
| Width mm | 40 | |||
| Height mm | 4.8 |

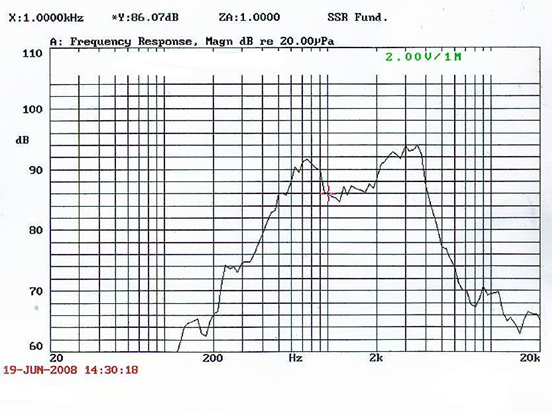

Characteristic Response:

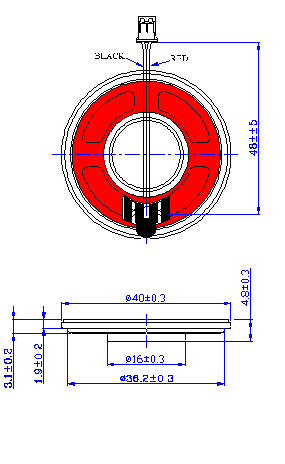

Dimension Drawing:
