Characteristic | Minimum | Rated | Maximum | Notes |
Type | Magnetic | |||
Sound Pressure Level dB at 30cm | 92 | Measured 90±3dB(SPL) at 1W and 0.3m. Frequencies: 1000 / 1200 / 1500 / 2000Hz | ||
Power W | 1 | 1.5 | ||
Frequency kHz | 0.4 | ±20% | ||
Available Input Impedance Ω | 8 | |||
Width mm | 45 | |||
Height mm | 8.3 |

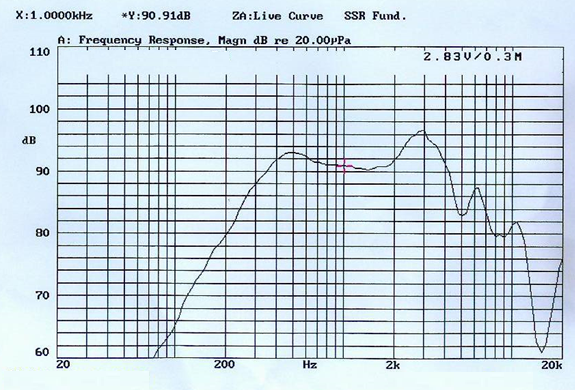

Characteristic Response:
![](https://www.east-elec.com/sites/default/files/speaker/2_21.png)

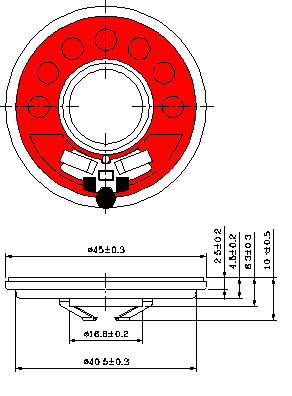

Dimension Drawing:
![](https://www.east-elec.com/sites/default/files/speaker/1_20.png)
