Characteristic | Minimum | Rated | Maximum | Notes |
Type | Magnetic | |||
Sound Pressure Level dB at 30cm | 96.4 | Measured 84±3dB(SPL) at 0.25W and 0.5m. Frequencies: 800 / 1000 / 1200 / 1500Hz | ||
Power W | 1 | 2 | ||
Frequency kHz | 0.65 | ±20% | ||
Available Input Impedance Ω | 8 | |||
Width mm | 45 | |||
Height mm | 9.7 | ±0.5mm |

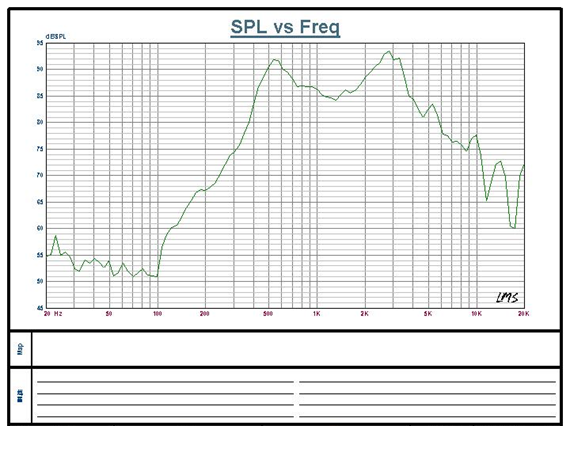

Characteristic Response:
Dimension Drawing:
