SWM-46.3R23-8F2R

Characteristic Minimum Rated Maximum Notes
Type Magnetic
Sound Pressure Level dB at 30cm 96.4 Measured 89±3dB(SPL) at 1W and 0.5m. Frequencies: 800 / 1000 / 1200 / 1500Hz
Power W 2 3.5
Frequency kHz 0.6 ±20%
Available Input Impedance Ω 8
Width mm 46.3
Height mm 23 ±1mm

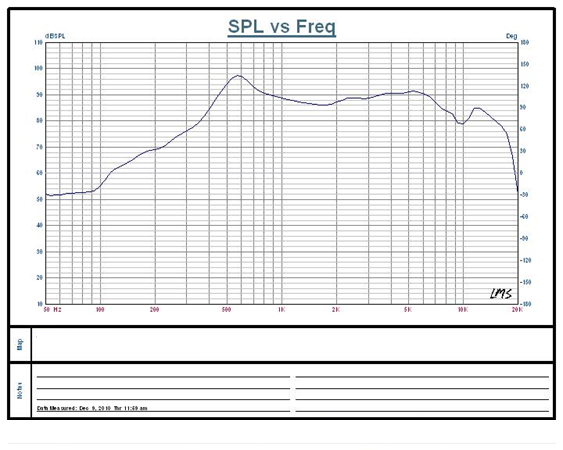

Characteristic Response:

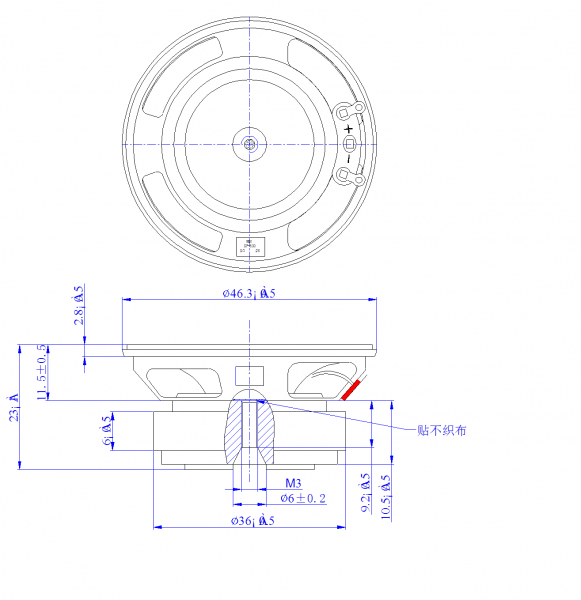

Dimension Drawing:
