| Characteristic | Minimum | Rated | Maximum | Notes |
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 102.5 | Measured 76dB(SPL) at 1W and 1m. Frequencies: 1.5 / 2.0 / 2.5 / 3.0kHz | ||
| Power W | 1.5 | 2 | ||
| Frequency kHz | 0.8 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 17.8 | 53 | ||
| Height mm | 14.5 |

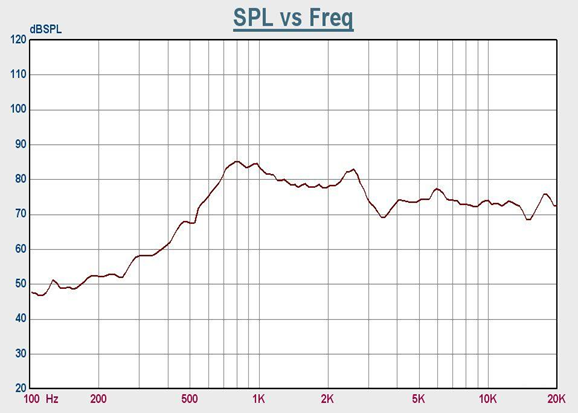

Characteristic Response:

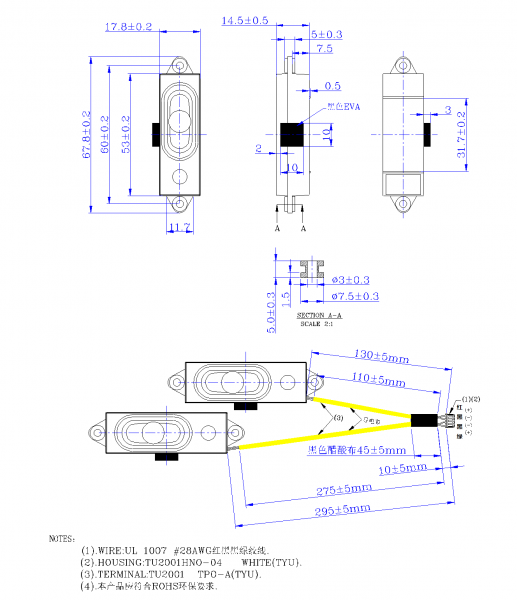

Dimension Drawing:
