Characteristic | Minimum | Rated | Maximum | Notes |
Type | Magnetic | |||
Sound Pressure Level dB at 30cm | 96.4 | Measured 83±3dB(SPL) at 0.25W and 0.5m. Frequencies: 800 / 1000 / 1200 / 1500Hz | ||
Power W | 0.25 | 0.5 | ||
Frequency kHz | 0.45 | ±20% | ||
Available Input Impedance Ω | 25 | |||
Width mm | 57 | |||
Height mm | 10 | ±0.3mm |

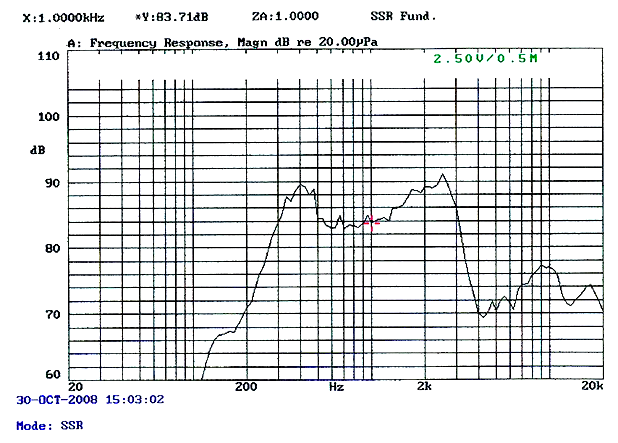

Characteristic Response:

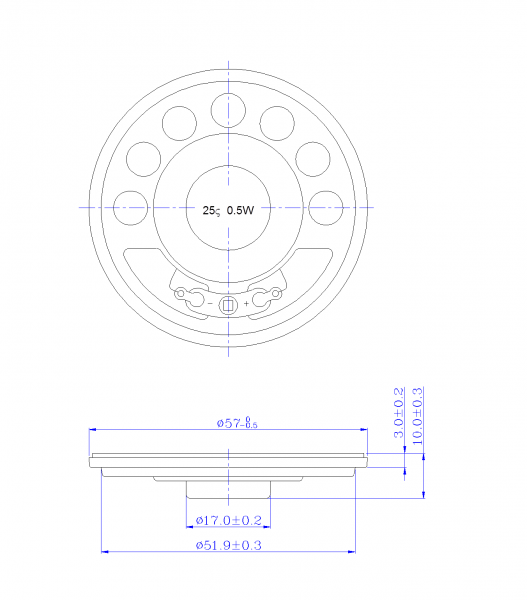

Dimension Drawing:
