| Characteristic | Minimum | Rated | Maximum | Notes |
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 96.4 | Measured 84±3dB(SPL) at 0.25W and 0.5m. Frequencies: 300 / 400 / 500 / 600Hz | ||
| Power W | 4 | 5 | ||
| Frequency kHz | 0.23 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 60 | ±0.5mm | ||
| Height mm | 31.5 | ±0.5mm |

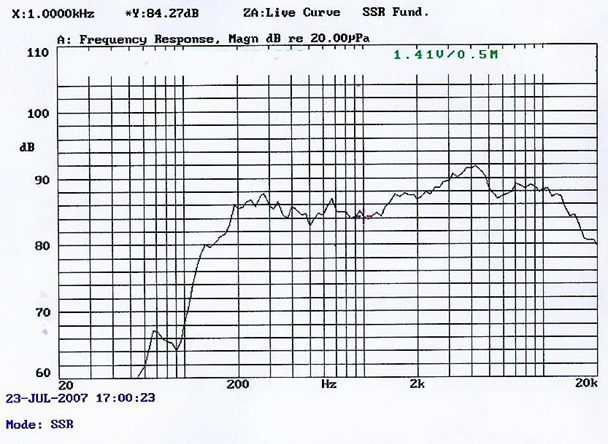

Characteristic Response:

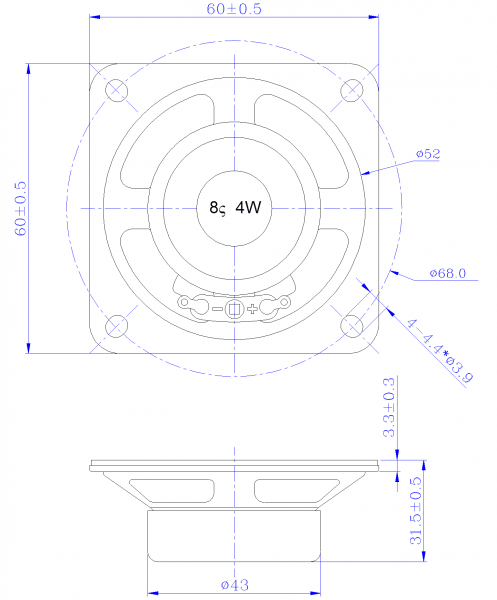

Dimension Drawing:
