SWM-87L15-4N3R

Characteristic Minimum Rated Maximum Notes
Type Magnetic
Sound Pressure Level dB at 30cm 96.4 Measured 82±3dB(SPL) at 1W and 0.5m. Frequencies: 1500 / 2000 / 2500 / 3000Hz
Power W 3 4
Frequency kHz 0.65 ±20%
Available Input Impedance Ω 4
Width mm 20 87 ±0.5mm
Height mm 15 ±0.5mm

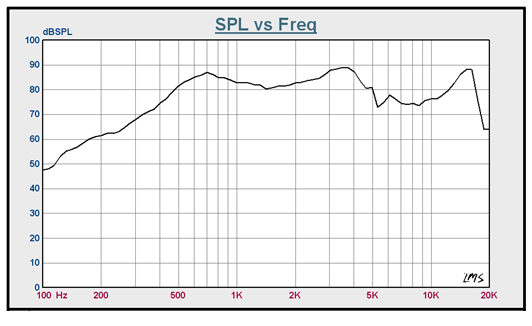

Characteristic Response:

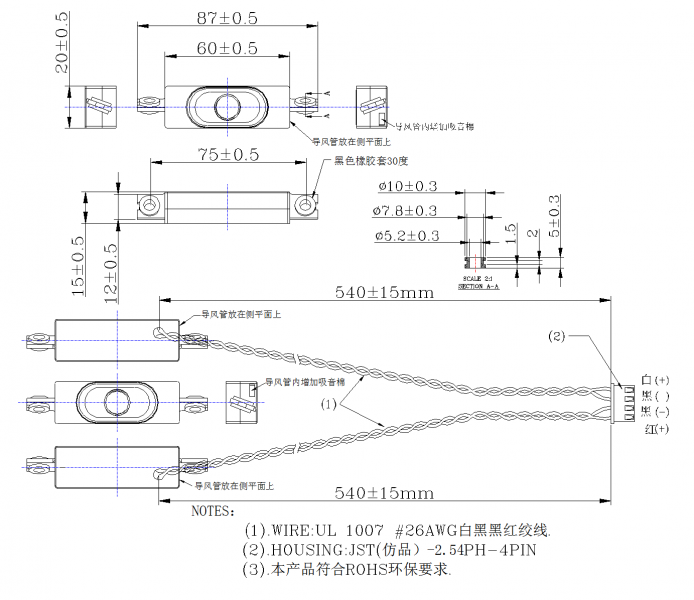

Dimension Drawing:
