LCD; Notebook PC Applications
Full Range
Characteristic Minimum Rated Maximum Notes
Type of Magnet NdFeB
Type of Frame Plastic
Type of Diaphragm Fabric
Type Magnetic
Sound Pressure Level dB at 30cm 90 Measured 90±3dB at 1W and 30cm.
Power W 1 2
Frequency kHz 0.6 0.6 20
Available Input Impedance Ω 4 32 64
Width mm 40
Height mm 8.5
Weight g 40

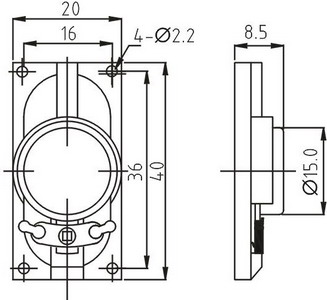

Dimension Drawing:
