| Characteristic | Minimum | Rated | Maximum | Notes |
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | Mylar | |||
| Sound Pressure Level dB at 30cm | 92.4 | measured 88±3dB 0.5 m (A1000,1200,1500,2000,Hz Average) | ||
| Power W | 2 | 3 | operating continuously for 100 hours at 2.82 V. Max Power for 1 min on & 2 min off, cycling for 10 times at 3.46 V | |
| Frequency kHz | 0.7 | 20 | at 2.0 V with harmonic distortion < 5 % At 1000 Hz | |
| Available Input Impedance Ω | 4 | ± 15 % at 1kHz | ||
| Temperature ºC | 85 | |||
| Width mm | 20 | 40 | ||
| Height mm | 8.5 | |||
| Weight g | 7.77 | |||
| Mounting | Custom | |||
| Termination | lead wire |

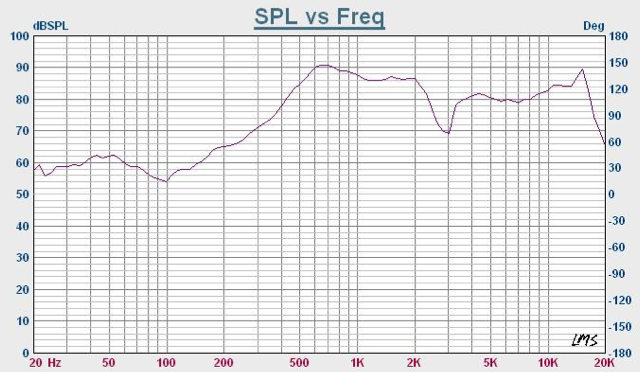

Characteristic Response:

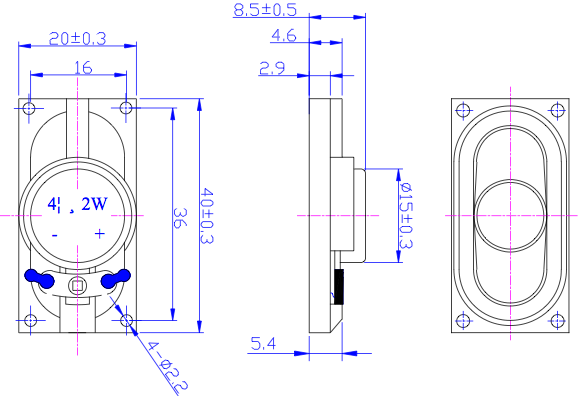

Dimension Drawing:
