LCD; Notebook PC Applications
Full Range
Characteristic Minimum Rated Maximum Notes
Type of Magnet NdFeB
Type of Frame Plastic
Type of Diaphragm Complex
Type Magnetic
Sound Pressure Level dB at 30cm 86 Measured 86±3dB at 2W and 30cm.
Power W 2 3
Frequency kHz 0.48 0.48 20
Available Input Impedance Ω 4 45 64
Width mm 40
Height mm 11.9
Weight g 40

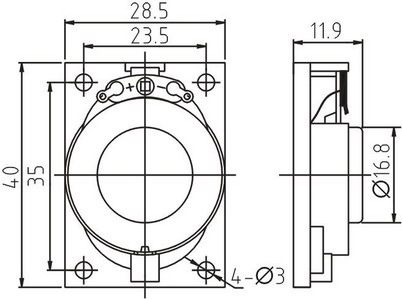

Dimension Drawing:
