LCD; Notebook PC Applications
Full Range
Characteristic Minimum Rated Maximum Notes
Type of Magnet NdFeB
Type of Frame Metal
Type of Diaphragm Complex
Type Magnetic
Sound Pressure Level dB at 30cm 79 Measured 79±3dB at 2.5W and 30cm.
Power W 2.5 4
Frequency kHz 0.45 0.45 20
Available Input Impedance Ω 4 8 64
Width mm 70
Height mm 19.4
Weight g 70

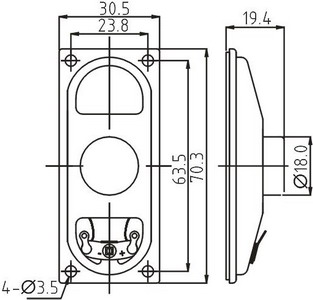

Dimension Drawing:
