LCD; Notebook PC Applications
Full Range; Low fo
Characteristic Minimum Rated Maximum Notes
Type of Magnet NdFeB
Type of Frame Metal
Type of Diaphragm Complex
Type Magnetic
Sound Pressure Level dB at 30cm 83 Measured 83±3dB at 2W and 30cm.
Power W 2 3
Frequency kHz 0.27 0.27 20
Available Input Impedance Ω 4 4 64
Width mm 58
Height mm 19.1
Weight g 58

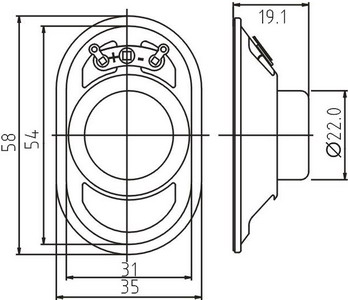

Dimension Drawing:
