MWE-9765-623-OX-4510
| Height | 6.7 mm |
|---|
| Width | 9.7 mm |
|---|
| SPL | 110 dB |
|---|
| Frequency | 1 kHz |
|---|
| Rated Voltage | 4.5 |
|---|
| Mounting | Surface Mount |
|---|
| Type | ECM |
|---|
| Directivity | Omnidirectional |
|---|
| Sensitivity | -42 dB |
|---|
Electrical Specifications
| Characteristic | Minimum | Typical | Maximum | Notes |
|---|
| Directivity | | Omnidirectional | | |
| Type | | ECM | | |
| Sensitivity dB | -42 | | | ±2dB (0dB=1V/1Pa; 1KHz) |
| S/N Ratio dB | | | 58 | A-Curve at 1kHz; 1Pa |
| Sound Pressure Level | | | 110 | |
| Voltage V | 1 | 4.5 | 10 | |
| Current mA | | | 0.6 | |
| Frequency kHz | | 1 | | |
| Impedance Ω | | | 1000 | |
| Temperature ºC | -20 | | 70 | |
| Relative Humidity % | 45 | | 85 | |
| Width mm | | 9.7 | | |
| Height mm | | 6.7 | | |
| Weight g | | 0.9 | | |
| Mounting | | Surface Mount | | |
| Termination | | surface mount | | |

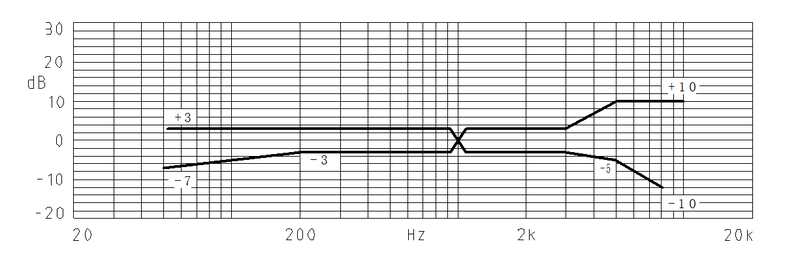

Characteristic Response

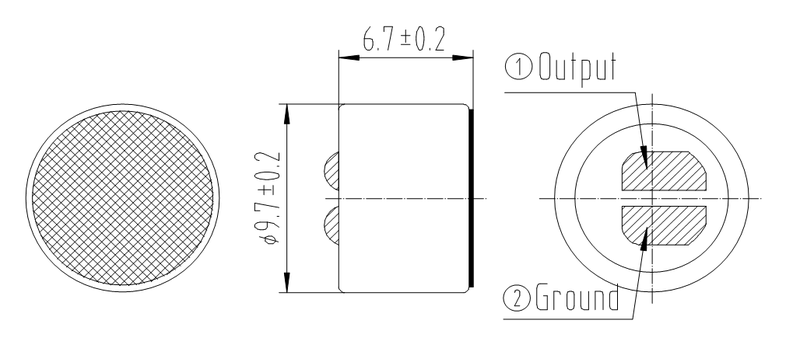

Dimension Drawing

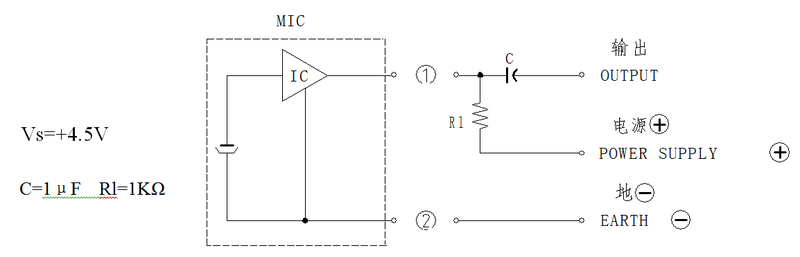

Microphone Schematic
