MWF-9750-674-UP
Features & Applications
SMD and Pin terminations available
| Height | 5 mm |
|---|---|
| Width | 9.7 mm |
| SPL | 110 dB |
| Rated Voltage | 1.5 |
| Mounting | Through Hole |
| Type | ECM |
| Directivity | Unidirectional |
| Sensitivity | -47 dB |
Electrical Specifications
| Characteristic | Minimum | Typical | Maximum | Notes |
|---|---|---|---|---|
| Directivity | Unidirectional | |||
| Type | ECM | |||
| Sensitivity dB | -47 | ±4dB (0dB=1V/1Pa; 1KHz) test conditions: Temperature:20ºC; rel humidity: between 60 & 70%; Pressure: between 86 & 106kPa | ||
| S/N Ratio dB | 60 | A-Curve at 1kHz; 1Pa | ||
| Sound Pressure Level | 110 | |||
| Voltage V | 1 | 1.5 | 10 | |
| Current mA | 0.6 | |||
| Impedance Ω | 680 | |||
| Temperature ºC | -20 | 70 | ||
| Relative Humidity % | 45 | 85 | ||
| Width mm | 9.7 | |||
| Height mm | 5 | |||
| Weight g | 0.8 | |||
| Mounting | Through Hole | |||
| Termination | pin |

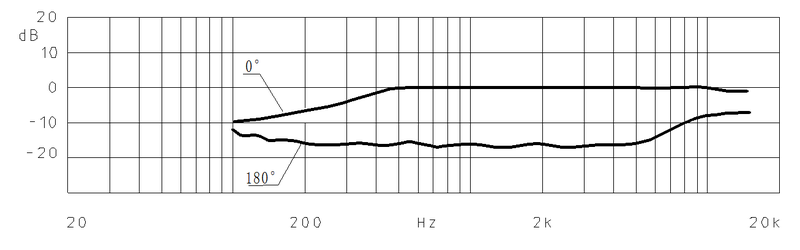

Characteristic Response

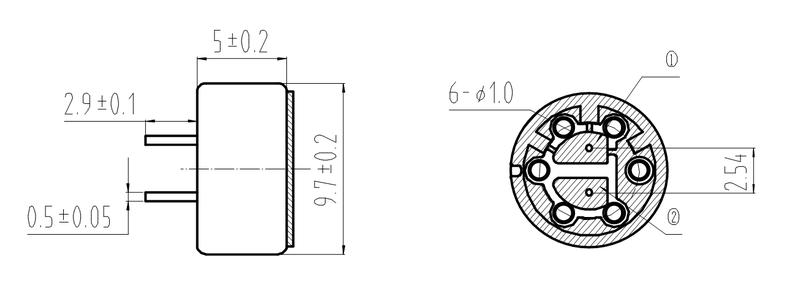

Dimension Drawing

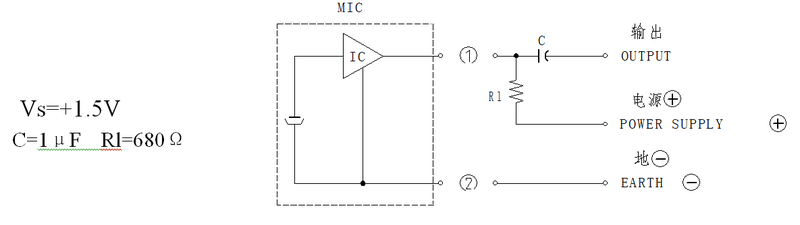

Schematic Diagram
