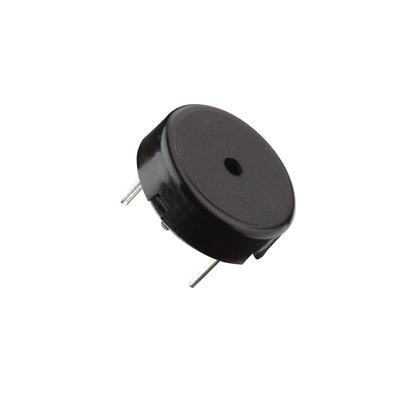

TFM-25B
Features & Applications
Features
- Easy installation
- High reliability
- Ultra-thin design
- Low power consumption
Applications
- Consumer Electronics
- Medical
- IoT & Smart Home
- Intercom
| Diameter | 16.5 mm |
|---|---|
| Height | 7 mm |
| SPL | 75 dB |
| Frequency | 4.0±0.5 kHz |
| Rated Voltage | 3Vp-p |
| Mounting | PIN |
Electrical Specifications

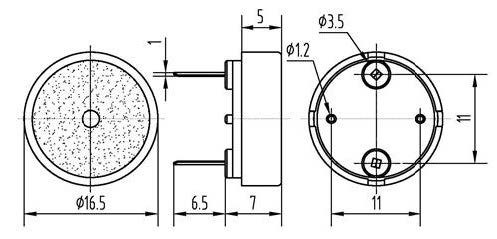

尺寸(mm)
声压
