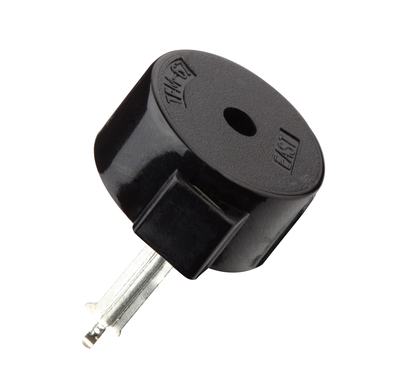

TFM-67
Features & Applications
Features
- Easy installation
- High reliability
- Low power consumption
Applications
- Consumer Electronics
- Industrial & Automation
- Medical
- IoT & Smart Home
- Intercom
| Diameter | 22 mm |
|---|---|
| Height | 11 mm |
| SPL | 75 dB |
| Frequency | 2.0±0.5 kHz |
| Rated Voltage | 3Vp-p |
| Mounting | PIN |
Electrical Specifications

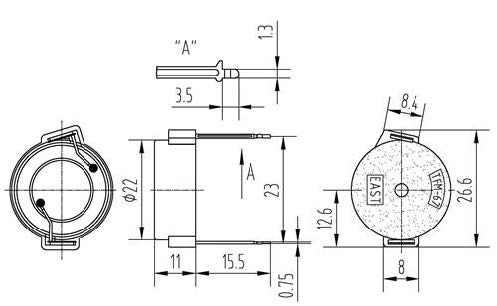

尺寸(mm)
声压
Detailed Specifications
75dB/2.0kHz/3Vp-p square wave /10cm,25Vp-p,30±30%nF(At 120Hz),3mA/2.0kHz/3Vp-p square wave,2.0± 0.5kHz,-20~+70℃,PC/Black,2.5g,More than 10N
