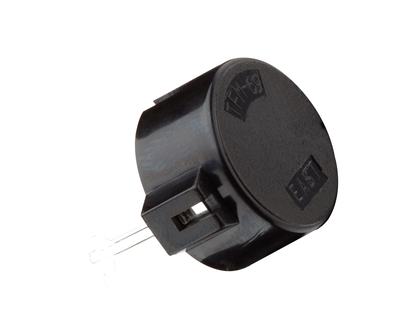

TFM-69
Features & Applications
Features
- Easy installation
- High reliability
- Low power consumption
Applications
- Consumer Electronics
- Industrial & Automation
- Medical
- IoT & Smart Home
- Intercom
| Diameter | 19 mm |
|---|---|
| Height | 10.5 mm |
| SPL | 90 dB |
| Frequency | 2.7±0.5 kHz |
| Rated Voltage | 10Vp-p |
| Mounting | PIN |
Electrical Specifications

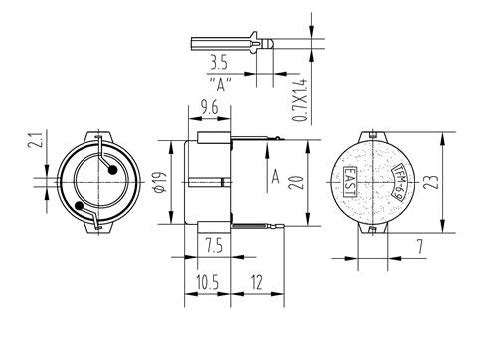

尺寸(mm)
声压
Detailed Specifications
90dB/2.7kHz/10Vp-p square wave /10cm,25Vp-p,32±30%nF(At 100Hz),9mA/2.7kHz/10Vp-p square wave,2.7± 0.5kHz,-20~+70℃,ABS(PA777E)/Black,1.8g,More than 10N
