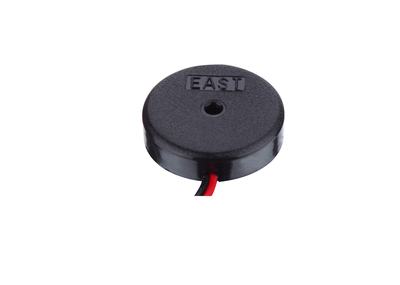

TFM-73
Features & Applications
Features
- Easy installation
- High reliability
- Low power consumption
Applications
- Consumer Electronics
- Industrial & Automation
- Medical
- IoT & Smart Home
- Intercom
| Diameter | 13.8 mm |
|---|---|
| Height | 4 mm |
| SPL | 83 dB |
| Frequency | 4.8±0.3 kHz |
| Rated Voltage | 10Vp-p |
| Mounting | LEAD WIRE |
Electrical Specifications

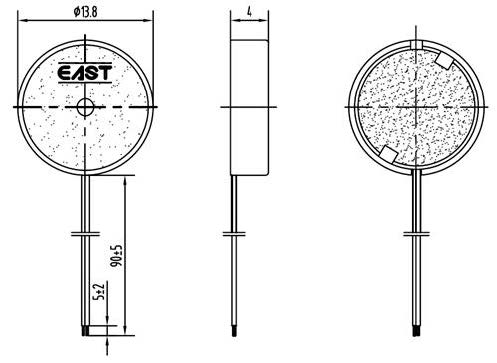

尺寸(mm)
声压
Detailed Specifications
83dB/4.8kHz/10Vp-p square wave /10cm,20Vp-p,15±30%nF(At 1000Hz) ,5mA/4.8kHz/10Vp-p square wave ,4.8± 0.3kHz ,-20~+70℃ ,ABS/Black ,0.6g,UL1571-30AWG
