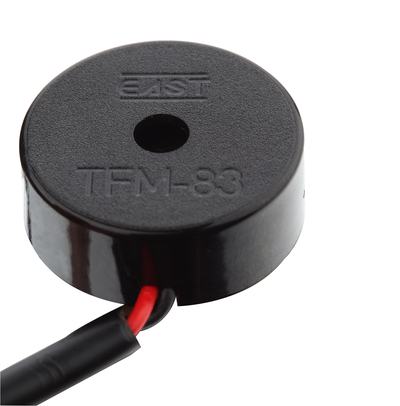

TFM-83L3520
Features & Applications
Features
- Easy installation
- High reliability
- Low power consumption
Applications
- Consumer Electronics
- Industrial & Automation
- Medical
- IoT & Smart Home
- Intercom
| Diameter | 23 mm |
|---|---|
| Height | 8.2 mm |
| SPL | 80 dB |
| Frequency | 4.0±0.5 kHz |
| Rated Voltage | 3Vp-p |
| Mounting | LEAD WIRE |
Electrical Specifications
尺寸(mm)

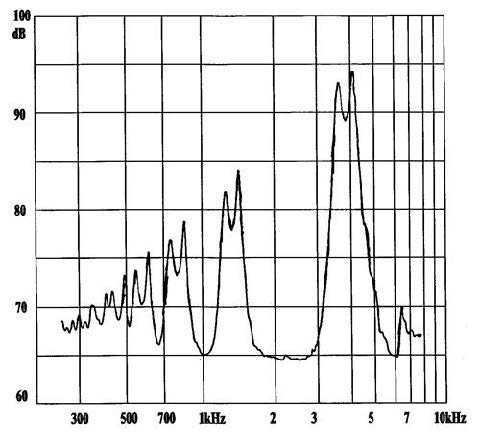

声压
Detailed Specifications
80dB/4.0kHz/3Vp-p square wave /10cm;70dB/1.33kHz/3Vp-p square wave /10cm,40Vp-p,13±30%nF(At 1000Hz),3.5mA/4.0kHz/3Vp-p square wave,4.0± 0.5kHz,-20~+70℃ ,PC/Black ,70g,2C×24AWG(UL1095)
