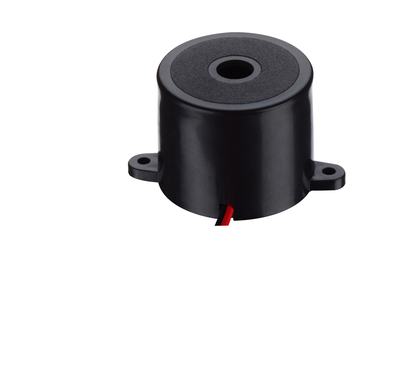

SL1I-06L
Features & Applications
Features
- Excellent high-frequency performance (2,500–20,000 Hz)
- Wide operating voltage range
- Easy installation
- High reliability
- Low power consumption
- High sound pressure levels
Applications
- Consumer Electronics
- Industrial & Automation
- Security Access
- IoT & Smart Home
| Diameter | 23.5 mm |
|---|---|
| Height | 19 mm |
| SPL | 83 dB |
| Frequency | 3.3 ± 0.5 kHz |
| Rated Voltage | 6VDC |
| Mounting | LEAD WIRE |
Electrical Specifications
尺寸(毫米)
声压
Detailed Specifications
83dB/6VDC/30cm,6VDC,4.5~9VDC,15mA/6VDC,3.3± 0.5kHz(Tone Nature: Continuous),-20~+70ºC,ABS/Black,8g(Wire Standard:UL1095-28AWG)
