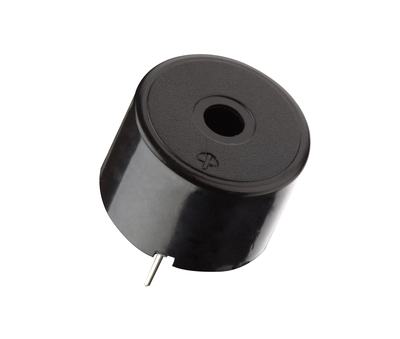

SL1I-12CP
Features & Applications
Features
- Excellent high-frequency performance (2,500–20,000 Hz)
- Wide operating voltage range
- Easy installation
- High reliability
- Low power consumption
- High sound pressure levels
Applications
- Consumer Electronics
- Industrial & Automation
- Security Access
- IoT & Smart Home
| Diameter | 23.5 mm |
|---|---|
| Height | 16 mm |
| SPL | 87 dB |
| Frequency | 3.4 ± 0.5 kHz |
| Rated Voltage | 12VDC |
| Mounting | PIN |
Electrical Specifications

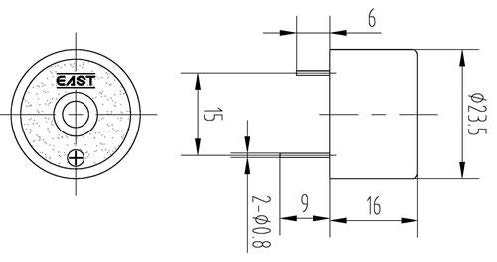

尺寸(mm)
声压
