SL1I-48P
Features & Applications
Features
- Excellent high-frequency performance (2,500–20,000 Hz)
- Wide operating voltage range
- Easy installation
- High reliability
- Low power consumption
- High sound pressure levels
Applications
- Consumer Electronics
- Industrial & Automation
- Security Access
- IoT & Smart Home
| Diameter | 23.5 mm |
|---|---|
| Height | 19 mm |
| SPL | 88 dB |
| Frequency | 3.3 ± 0.5 kHz |
| Rated Voltage | 48VDC |
| Mounting | PIN |
Electrical Specifications

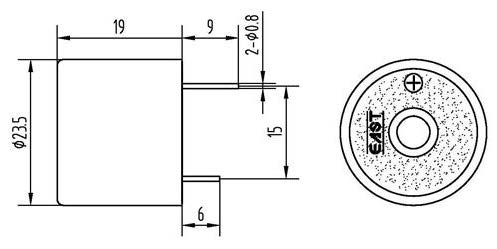

尺寸(毫米)

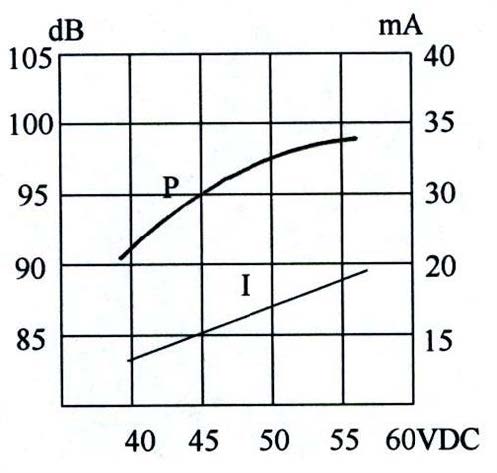

声压
Detailed Specifications
88dB/48VDC/30cm,48VDC,38~58VDC,18mA/48VDC,3.3± 0.5 kHz(Tone Nature: Continuous),-20~+70ºC,Fire-resistance ABS/Black,8g,More than 10N
