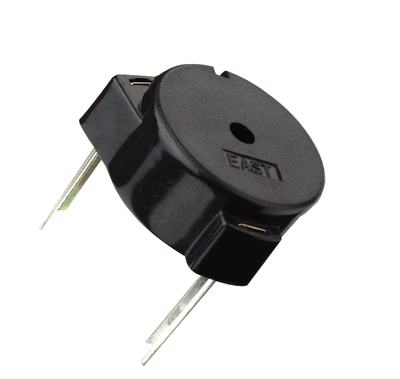

EFM-390BA
Features & Applications
Features
- Easy installation
- High reliability
- Low power consumption
- High sound pressure levels
Applications
- Consumer Electronics
- Industrial & Automation
- Medical
- IoT & Smart Home
- Intercom
| Diameter | 24 mm |
|---|---|
| Height | 8.3 mm |
| SPL | 90 dB |
| Frequency | 3.8±0.5 kHz |
| Rated Voltage | 12VDC |
| Mounting | PIN |
Electrical Specifications

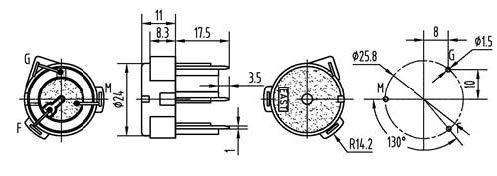

尺寸(毫米)
声压
Detailed Specifications
90dB/12VDC/10cm,12VDC,3~20VDC,12mA/12VDC,3.8±0.5 kHz,-20~+70ºC,PC/Black,4.5g,More than 10N
