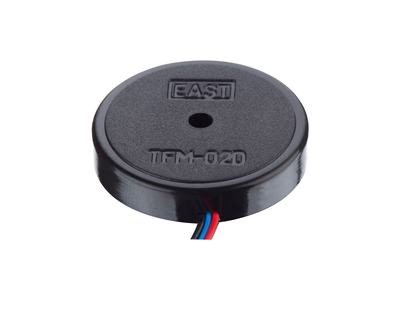

TFM-02D
Features & Applications
Features
- Easy installation
- High reliability
- Low power consumption
- High sound pressure levels
Applications
- Consumer Electronics
- Industrial & Automation
- Medical
- IoT & Smart Home
- Intercom
| Diameter | 25 mm |
|---|---|
| Height | 5 mm |
| SPL | 85 dB |
| Frequency | 5.0±1.0 kHz |
| Rated Voltage | 6VDC |
| Mounting | LEAD WIRE |
Electrical Specifications
尺寸(毫米)
声压
Detailed Specifications
85dB/6VDC/10cm,6VDC,3~16VDC,5mA/6VDC,5.0± 1.0kHz(Tone Nature: Continuous),-20~+70ºC,ABS/Black,2.2g(Wire Standard:UL1571-30AWG)
