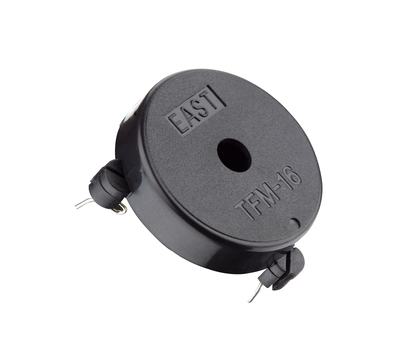

TFM-16
Features & Applications
Features
- Easy installation
- High reliability
- Low power consumption
- High sound pressure levels
Applications
- Consumer Electronics
- Industrial & Automation
- Medical
- IoT & Smart Home
- Intercom
| Diameter | 33.5 mm |
|---|---|
| Height | 8 mm |
| SPL | 82 dB |
| Frequency | 2.6±0.5 kHz |
| Rated Voltage | 12VDC |
| Mounting | PIN |
Electrical Specifications
尺寸(毫米)
声压
Detailed Specifications
82dB/12VDC/100cm,12VDC,6~30VDC,10mA/12VDC,2.6± 0.5kHz(Tone Nature: Continuous),-20~+70ºC,ABS/Black,5.0g,More Then 10N
